Mics:
Drum kit: standard 3 toms jazz kit setup, fully miked.
Percussion: 3 congas
Guitar: Stereo amps, miked.
Hammond Organ: Leslie speaker, 4 mics (2 high and 2 low)
Organ bass: Bass amp, miked - not direct.
Bass: (Not the same amp) Mic amp or take the bass direct. Bass player
will use different instruments.
Announce mic at organ (no singing) on boom stand
Monitors:For a theatrical concert stage or
large club: 4 wedges (at organ, guitar, drums, percussion positions)
with individual mixes
For small clubs and stages: 2 wedges (at drums,
percussion positions) with individual mixes
Back line:
Organ:
Hammond B-3, C-3 or A-100. Must be a vintage, tube preamp Hammond,
not a modern Suzuki-manufactured Hammond.
Leslie speaker, model 122. Must be a vintage, tube amp Leslie, not
a modern Suzuki-manufactured Leslie.
Bench: Matching Hammond bench seat or equivalent
Bass amp: Small bass amp with single 15"
speaker
Guitar amps: 2 Fender Twin Reverb amps
Percussion: 1 LP Quinto, 1 LP Conga, 1 LP
Tumbadora
Drums: 2 tom jazz kit - Fibes if possible
14" X 18" bass drum
8"X12" mounted tom
14" X 14" floor tom
6 1/2 " X 14" snare drum
snare drum stand
high hat stand
bass drum foot pedal
3 cymbal stands (with booms)
throne (adjustable drum seat)
if possible, coated remo ambassador drum heads on all
drums |
|
|
|
Stage plans
Levels:
Drums on riser; Percussion (congas) on riser; Organ, guitar
& bass on floor.
(Right-click on any stage diagram to save as a GIF
file) |

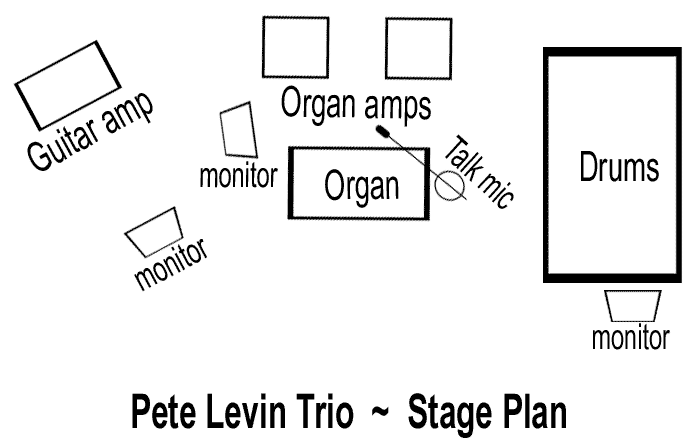

trio
organ, guitar, drums |
|
 |

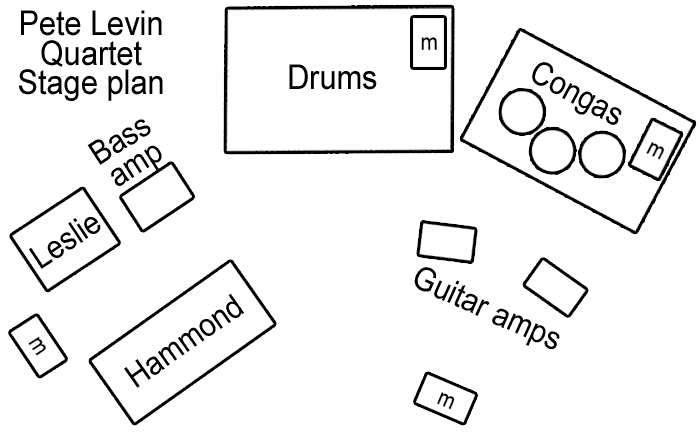

quartet
organ, guitar, drums, percussion |
|
 |

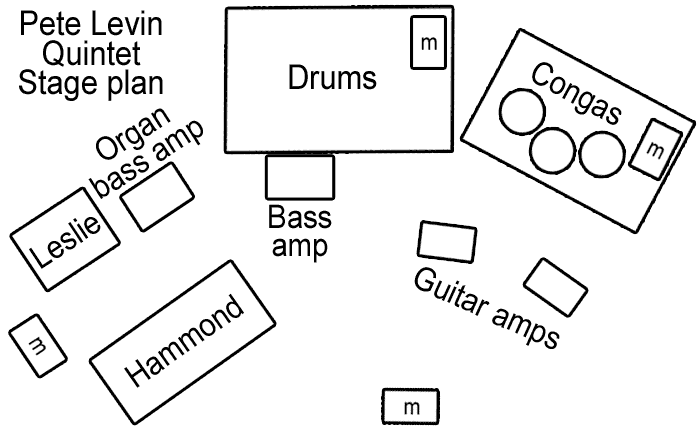

quintet
organ, guitar, bass, drums, percussion |
|
 |
